Product details

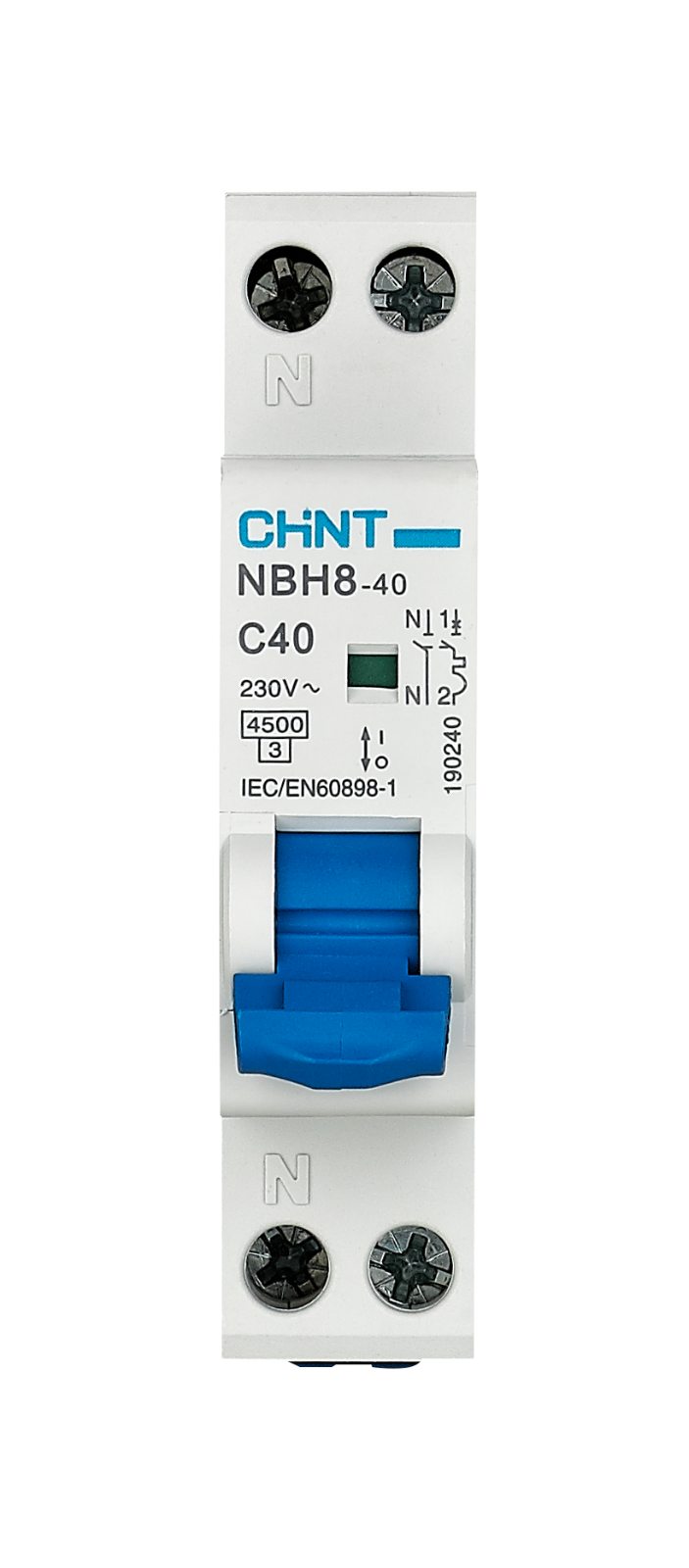

CHINT NBH8-40 1P+N MCB
The CHINT NBH8-40 is a compact 1P+N (Single Pole + Neutral) miniature circuit breaker (MCB) rated up to 40A. It provides essential overload and short-circuit protection for domestic and commercial power distribution. Measuring only 18mm wide, it disconnects both live and neutral lines synchronously. Key Specifications - Rated Current: Available in 1A to 40A variants. - Breaking Capacity: 4.5kA or 6kA (6kA is the standard choice for domestic use). - Rated Voltage: 230/240V AC at 50/60Hz. - Tripping Curves: Available in B Curve (trips 3-5 times full load current, ideal for domestic use) and C Curve (trips 5-10 times full load current, suited for inductive/industrial loads). - Mounting: 35mm DIN rail.
From ₦5,143
VAT-inclusive priceAvailable options: 3A, 10A, 16A, 20A, 25A, 32A, 40A
Choose quantities
3A
₦5,143
10A
₦5,143
16A
₦5,143
20A
₦5,143
25A
₦5,143
32A
₦5,143
40A
₦5,143
Selected total
From ₦5,143
