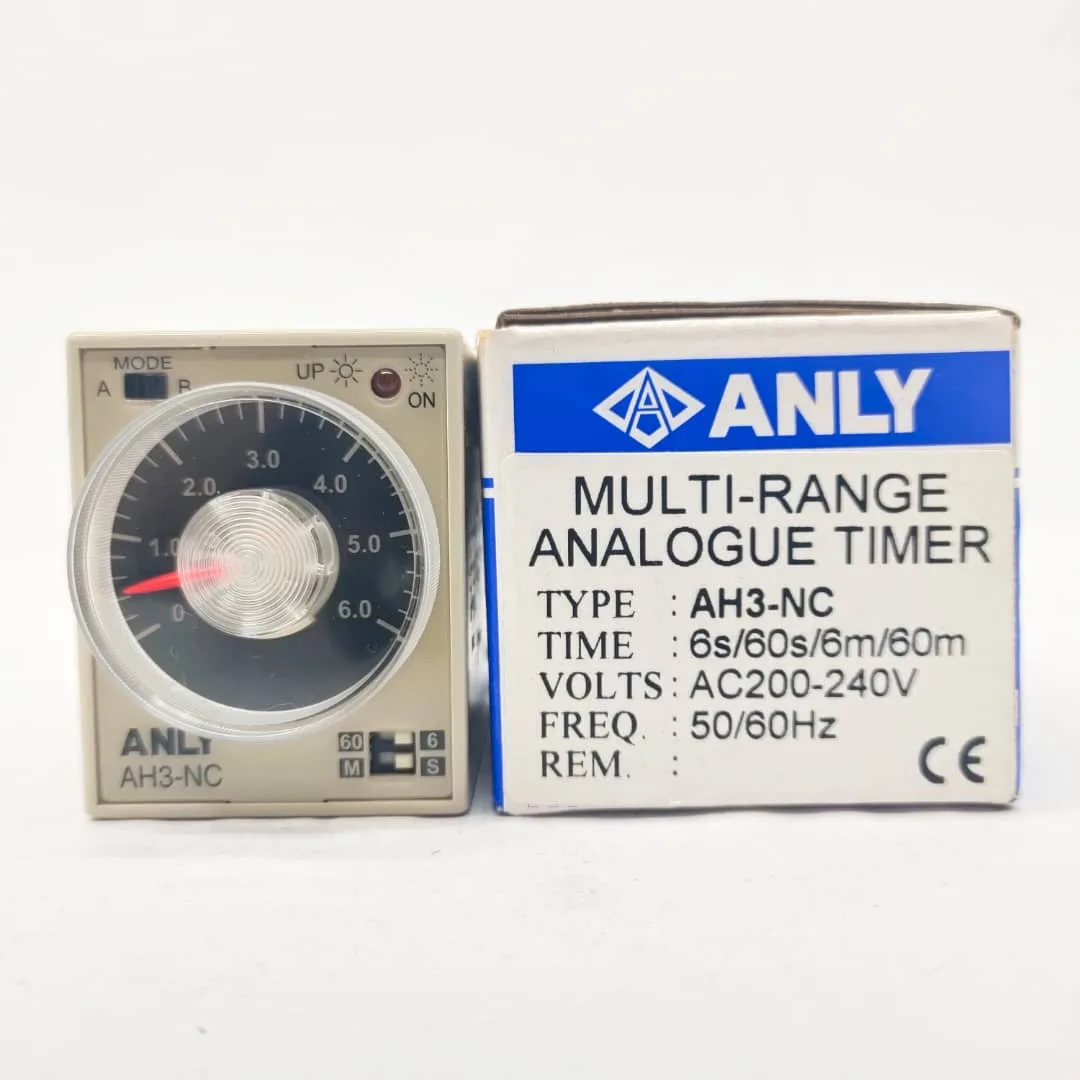

ANLY TIMER AH3-NC 220V Multi Range Analogue Timer

The AH3-NC is a widely used 8-pin, multi-range analogue on-delay timer. It features DIP switch-selectable time ranges (6S/60S/6M/60M), dual-mode operation (Mode A: two delayed contacts, Mode B: one instantaneous + one delayed), and handles 5A loads at 250V AC. Key Specifications & Wiring - Supply Voltage: Commonly available in AC (12V, 24V, 110V, 220V) and DC configurations. - Pin Configuration: 8-pin round base (fits standard sockets like PF083A or US-08). - Time Range: Selectable between 0–6 seconds, 0–60 seconds, 0–6 minutes, and 0–60 minutes. - Contact Rating: 5A at 250V AC (Resistive Load).

₦5,000
