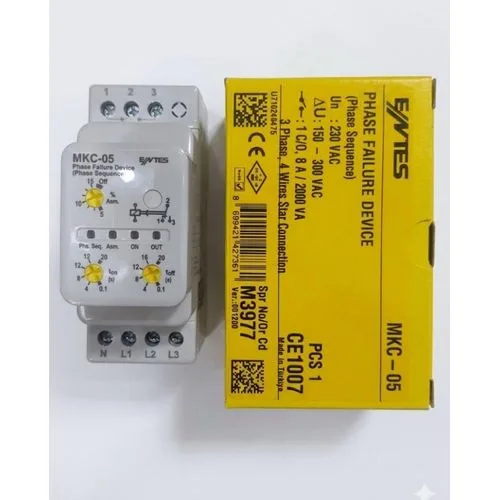

ENTES PHASE/VOLTAGE MONITORING RELAY Phase Failure, 3 Phase, 1 CO, DIN Rail

The ENTES MKC-05 is a voltage and phase monitoring relay rather than an adjustable current (amp) controller. Its internal relay output contact is rated for a maximum resistive current of 8A (at 250 VAC / 2000 VA), meaning it can switch control circuits up to 8 amps. Technical Specifications - Output Contact Rating: 1 C/O (changeover) contact, 8A, 2000 VA (for resistive loads) - Operating Voltage (\(U_{n}\)): 230 V AC - Operating Range (Δ U): 220–230 V AC (or \(0.9 - 1.1 \times U_n\)) - Asymmetry Range (Voltage Unbalance): Adjustable from 5% to 15% - Tripping/Delay Time: Adjustable from 0.1 to 10 seconds
